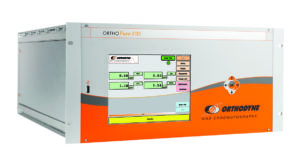

OrthoPure FID Gas Chromatograph

OrthoPure FID Gas Chromatograph - Orthodyne

OrthoPure FID Gas Chromatographs 600 - Orthodyne

OrthoPure FID Gas Chromatograph for PPB analysis

 Analysis of CH4, CO, CO2 & NMHC in PPB

General

The OrthoPure FID Gas Chromatograph is placed in a temperature regulated chamber. It is designed to detect traces of hydrocarbons in neutral gases. The combustion of Hydrogen and Synthetic Air creates a flame in which are burning the organic components contained in the gas to be analysed. When burning, these components produce ions which are collected by an electrode.

Principle

The very weak current obtained in this way is amplified in an electrometer with high gain and directed to a data acquisition system. A polarization electrode is connected on the level of the nozzle and a collecting electrode with adjustable distance make the best results possible. Coupled with a methanizer (UMTR unit), it also detects traces of CO and CO2. The methaniser is foreseen to convert, in a catalytic reactor, traces of CO and CO2 into methane.

This reaction takes place at a temperature of ± 350°C in presence of Hydrogen in excess. With a properly adjusted temperature and flowrate, the efficiency is almost of 100%. When supplied with high purity gases, the detection threshold can reach 1 ppb.

Applications

Discover which analyser(s) you need for your analytical requests. Check the application here !

Type of configurations

DID Gas Chromatograph - 500

Process Line

This new line 500 has been designed for stand alone operation. Easy configuration and quick start-up make this new system ideal for process gas analysis.

In addition to its user-friendly interface (touch screen display), the new line 500 has its own chromatographic software that allows the concentration of each impurity to be displayed directly. Moreover, the new line 500 can be remotely controlled through Ethernet or Internet.

DID Gas Chromatograph Line 500 - Orthodyne

DID Gas Chromatograph Line 500 - Brochure

DID Gas Chromatograph - 600

Laboratory Line

The new line 600 has been designed for working with Chromdyne software on a computer. It make this new system ideal for laboratory process gas analysis. Moreover, the new line 600 can be remotely controlled through Ethernet or Internet.

DID Gas Chromatograph Line 600 - Orthodyne

DID Gas Chromatograph Line 600 - Brochure

Technical specifications

Accuracy< 1% of the reading scale or depends on LDL
Drift< 1 % of the reading scale over 24 hours
Temperature drift<1 % of the reading scale per degree
Operating temperature~ 20°C without wide variations of temperature
Sampling gasN2, Ar, He, Air, H2, O2, CO2
Sample gas connection1/8’’ Swagelok SS or VCR
Sample flow rateApproximately 3 to 5 l/h
Sample pressureLower than 100 mBarg
Combustive gasSynthetic air
Combustive gas connection1/8’’ Swagelok SS or VCR
Combustive gas pressure2 Barg stable
Combustive gas flow rate300 ml/min
Recommended qualitymin. 6.0 or purified gas
Fuel gasHydrogen
Fuel gas connection1/8’’ Swagelok SS or VCR
Fuel gas pressure1 Barg stable
Fuel gas flow rate38 ml/min
Recommended qualityMin. 6.0 or purified gas
Carrier gasArgon, Nitrogen, Helium or Hydrogen
Carrier gas connection1/8’’ Swagelok SS or VCR
Carrier gas pressurefrom 4 to 10 Barg
Carrier gas flow rate2 to 6 l/h
Recommended qualitymin. 6.0 or purified gas
Power supply220 Vac, 50-60 Hz
Power consumption500 VA
4-20 mA outputEight configurable outputs depending
on the application.
Digital outputOptional RS232, modbus, Profibus
Output relays
(SPST 2 amperes / 250 Vac)
1 Analyser Failure alarm contact
1 Alarm High contact
1 Alarm High High contact

Dimensions & chromatogram

OrthoPure FID Gas Chromatograph Dimensions - Orthodyne

UMTR Gas Purifier Dimensions - Orthodyne

(Dimensions can differ regarding the application)

Measurement capabilities

 ArgonHeliumHydrogenNitrogenOxygen
CH4< 0.5 ppb< 0.5 ppb< 0.5 ppb< 0.5 ppb< 0.5 ppb
CO< 0.5 ppb< 1 ppb< 0.5 ppb< 0.5 ppb< 1 ppb
CO2< 1 ppb< 1 ppb< 1 ppb< 1 ppb< 1 ppb
NMHC<1 ppb< 1 ppb< 1 ppb< 1 ppb< 1 ppb



< 1 ppb resolution guaranteed (EPA 40)
User-friendly interface
Total Hydrocarbons (C2 => C5)
Adjustable alarm and oven settings
Fast response time
Possibility of auto-calibration programming
CE marked
