Analysis of H2, O2, N2, CH4, CO, CO2 in Argon.

 Pattern of Approval Russia | Pattern of Approval China (all certificates)

General

The DID Argon Gas Chromatograph has been designed to exploit the variations of high frequency discharge in Argon. The carrier gas (Argon) is passing through a detection chamber where it is submitted to a strong electromagnetic field fed between two electrodes by a high-frequency generator.

Principle

The DID Argon Gas Chromatograph has been designed to exploit the variations of high frequency discharge in Argon. The carrier gas (Argon) is passing through a detection chamber where it is submitted to a strong electromagnetic field fed between two electrodes by a high-frequency generator.

In these conditions, luminescence takes place. The characteristics of the luminescence are modified by any impurity present in the initial gas passing through the chamber.

The luminous intensity of the discharge particularly gives, under well defined detector working conditions, a stable, continuous and linear function of gas composition for each impurity.

The luminous intensity of the discharge is measured by means of a photoreceptive cell which is part of the bridge, the unbalanced voltage of which becomes, after amplification, the output signal of the instrument.

Some Global References

Company Type of analyser Model Measurements
Air Products (Czech) Argon DID O2, N2, CH4
AGA (Finland) Argon DID H2, O2, N2, CH4, CO
Linde (Italy) Argon DID H2, O2, N2, CH4
Air Liquide (Angola) Argon/Carbon Dioxide DID H2, O2, N2
Linde (Germany) Argon DID H2, O2, N2, CH4, CO2

Type of configurations

DID Argon - 500

Process Line

This new line 500 has been designed for stand alone operation. Easy configuration and quick start-up make this new system ideal for process gas analysis.

In addition to its user-friendly interface (touch screen display), the new line 500 has its own chromatographic software that allows the concentration of each impurity to be displayed directly. Moreover, the new line 500 can be remotely controlled through Ethernet or Internet.

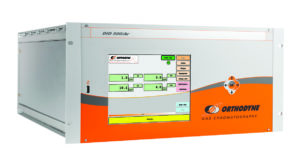

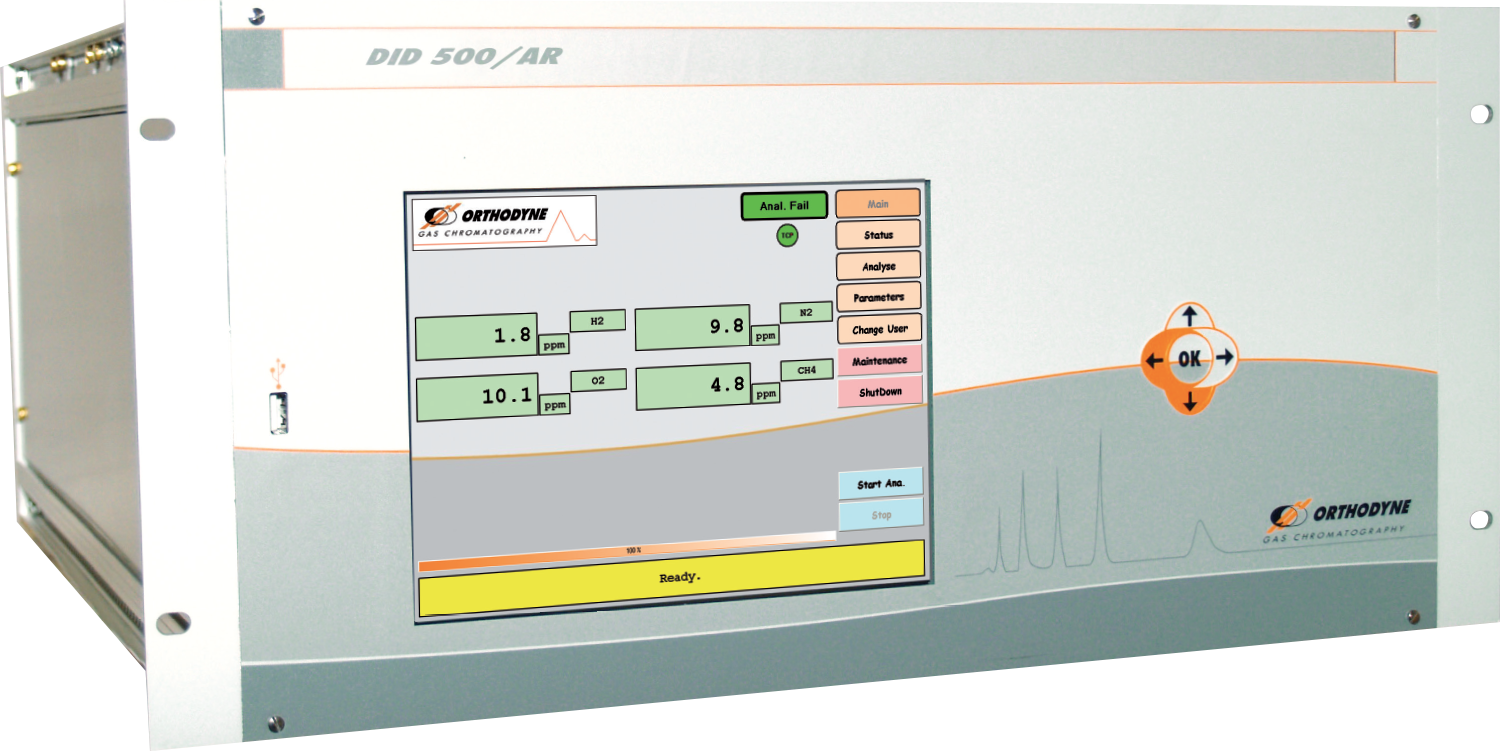

DID Argon Gas Chromatograph Line 500 - Orthodyne

DID Argon Gas Chromatograph Line 500 - Brochure

DID Argon - 600

Laboratory Line

The new line 600 has been designed for working with Chromdyne software on a computer. It make this new system ideal for laboratory process gas analysis. Moreover, the new line 600 can be remotely controlled through Ethernet or Internet.

DID Argon 600 Gas Chromatograph Line 600 - Orthodyne

DID Argon Gas Chromatograph Line 600 - Brochure

Technical specifications

Accuracy1 % of the reading scale
Drift1 % over 24 hours
Temperature drift1 % per degree
Operating temperature± 20°C without wide variations of temperature
Sampling gasArgon
Sample gas connection1/8’’ Swagelok SS
Sample flow rateApproximately 3 to 5 l/h
Sample pressure< 100 mBar
Carrier gasArgon
Carrier gas connection1/8’’ Swagelok SS
Carrier gas pressure7 bar
Carrier gas flow rate4 l/h
Recommended qualityminimum 6.0
Power supply220 Vac, 50-60 Hz
Power consumption500 VA
4-20 mA outputEight confi gurable outputs
depending on the application
RJ-45 connectionComputerised system maintenance
Output relays
(SPST 2 amperes / 250 Vac)
1 Analyser Failure Alarm contact
1 Alarm High contact
1 Alarm High High contact

Dimensions & chromatogram

DID Argon Gas Chromatograph Dimensions - Orthodyne

(Dimensions can differ regarding the application)

DID Argon Gas Chromatograph Chromatogram - Orthodyne

Measurement capabilities

 Argon
H2< 0.05 ppm
O2< 0.1 ppm
N2< 0.1 ppm
CH4< 0.05 ppm
CO< 0.1 ppm
CO2< 0.8 ppm

Features

0.05 ppm resolution guaranteed
User-friendly interface
Adjustable alarm and oven settings
Fast response time
Possibility of auto-calibration programming
CE marked
Chromdyne software

Applications

Discover which analyser(s) you need for your analytical requests. Check the application here !

Find a distributor

Check your closest distributor with our new tool. Click on distributors and it will open a new page.

Contact

Brochure

DID Argon Gas Chromatograph - Brochure
